Cargo securement violations continue to rank among the top issues found during roadside inspections. During the 2025 Commercial Vehicle Safety Alliance (CVSA) International Roadcheck, inspectors issued 1,549 out-of-service violations for cargo securement in the U.S., making it the #5 vehicle violation category (11.4% of vehicle OOS citations). Over 18,000 additional violations were issued for cargo not properly secured to prevent leaking, spilling, blowing, or falling.
For owner-operators, flatbed and step-deck drivers, small fleet managers, and new CDL holders, knowing how to properly secure truck cargo is one of the most important skills in freight transport and freight shipping. Doing it right protects other drivers, prevents load-shifting accidents, avoids expensive fines and out-of-service orders, and keeps your reputation solid.
The core Federal Motor Carrier Safety Administration (FMCSA) cargo securement rules (49 CFR Part 393 Subpart I) remain fully in effect and are still enforced. This post gives you a clear, high-level overview, along with practical truck cargo securement best practices to stay compliant and safe.
FMCSA Cargo Securement Rules Overview
These rules apply to commercial motor vehicles with a Gross Vehicle Weight Rating (GVWR) of 10,001 lbs. or more.
In simple terms, your load securement system must hold the cargo under normal conditions:
- 0.8g forward (hard braking)
- 0.5g rearward and sideways (turns or evasive moves)
The aggregate working load limit (WLL) of all your tiedowns must equal at least 50% of the cargo’s weight.
Most loads need a minimum number of tiedowns based on length and weight — typically at least two, with one additional tiedown required for every 10 feet (or fraction thereof) when the cargo is not blocked or positioned to prevent forward movement.
As the driver, you are required to inspect your securement within the first 50 miles, then re-check periodically (every 3 hours or 150 miles, and after any duty status change), including at each stop and even periodically on longer hauls.
Some common violations include insufficient tiedowns, damaged cargo tie-down straps or cargo chains, poor blocking, and missing edge protection. These can lead to fines, downtime, and higher insurance costs. Strong truck load securement prevents cargo shift violations and keeps you moving.
Essential Securement Equipment
Use quality gear rated for your load, including:

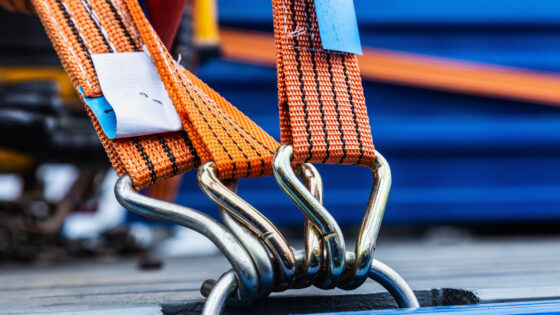

- Cargo chains, ratchet binders, cargo tie-down straps, and winch straps
- Dunnage, blocking, bracing, chocks, and friction mats
- Edge protection and load bars for trucks when needed
- Tarps for weather protection
Always inspect equipment before use. Look for cuts, fraying, stretching, rust, or worn ratchets. Never use damaged gear or improper substitutes. Matching the Working Load Limit (WLL) to your cargo is critical for flatbed load securement and overall truck loading safety.
Step-by-Step: How to Properly Secure Your Load
PLAN AHEAD
Distribute weight evenly and consider your route, weather, and potential load-shifting risks.
BLOCK & BRACE
Use solid dunnage and blocking to keep cargo from moving forward, backward, or sideways (“blocked and braced”).
APPLY TIEDOWNS CORRECTLY
Use enough tie-down cargo straps or chains at proper angles (ideally 45 degrees or less). Add edge protection to prevent cutting.
TIGHTEN & CHECK
Snug everything evenly, then re-tighten after the first 50 miles.
SPECIAL CONSIDERATIONS
Flatbeds often need extra chains for hauling heavy equipment. Enclosed trailers may use load bars for trucks or E-track systems. Tarping helps when required.
Take a few extra minutes to do it right. A well-secured load saves time and headaches down the road.
Inspection Readiness & Best Practices
DOT inspectors look for loose cargo securement, damaged equipment, and any risk of the load moving. Re-check your truck cargo after the first 50 miles and whenever conditions change like rain, wind, or heavy braking.
Good practices:
- Over-secure when in doubt.
- Account for road and weather conditions
- Treat every load like it could face a CVSA Roadcheck.
Consistent truck cargo securement best practices and compliance with DOT load securement regulations keep you safe and profitable.
Locked and Loaded
Proper load securement comes down to planning, using the right equipment correctly, and inspecting often. Follow FMCSA cargo securement rules, meet the performance standards and 50% WLL requirements, and focus on preventing shifting or falling cargo.
Safety and compliance protect lives and your business. When cash flow is steady, you can invest in quality cargo chains, ratchet straps, and other gear without cutting corners.
